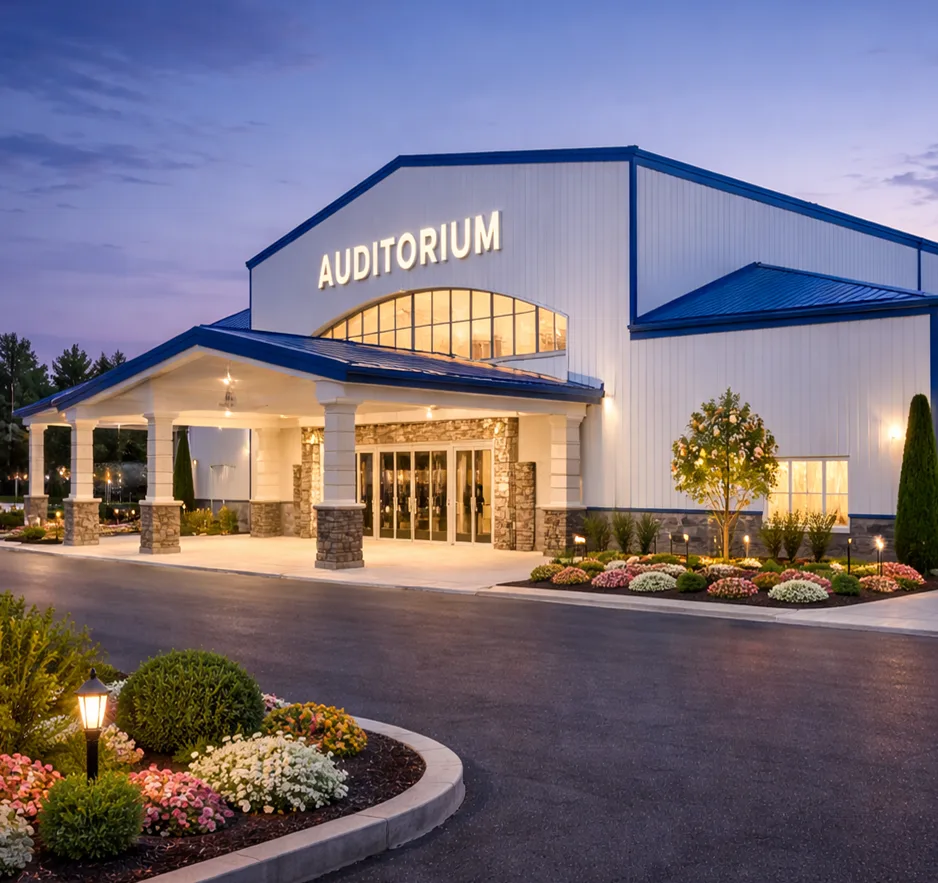

BongshaiSteel-Auditorium-Model-106
High-Quality Low-bugdet Steel Structure Auditorium
Model Code: BongshaiSteel-Auditorium-Model-106
Starting from Tk 1,250 per sq ft Final price depends on size, site and finish — ask for an exact quote.
Bongshai steel building is offering a customized design. All framing is made of built-up section from MS steel plate. Built-up column, rafter are main frame and purlin, girt, bracing is secondary frame. Column is connected with concrete column by anchor bolt. All members are connected by high-strength bolts. Parameter of the Building Building span 10 m ~ 40 m Length 25 m ~ 300 m Bay spacing 6 m, 7.5 m, 9 m & 10 m Height 4 m ~ 10 m
High-Quality Low-bugdet Steel Structure AuditoriumAuditorium · Bongshai Steel
01Key attributes
- Model number
- BongshaiSteel-Auditorium-Model-106
- Product type
- Auditorium
- Brand name
- Bongshai Steel
- Place of origin
- Dhaka, Bangladesh
- Design Standard
- AISC, AISI, BSI
- Load Combination
- MBMA, IBC
- Material
- ASTM, BSI, JIS
- Fabrication Standard
- AWS
- Construction Standard
- BSI
- Anchor Bolt
- ASTM A36, Grade 4.6, yield strength 250 MPa
- Built-up steel (main frame)
- ASTM Grade 50, yield strength 344 MPa
- Secondary frame (purlin, girt)
- ASTM Grade 50, yield strength 344 MPa
- Rod bracing & sag rod
- ASTM A36, Grade 4.6, yield strength 250 MPa
- High-strength bolt
- ASTM A325, Grade 8.8
- Mild steel bolt (MSB)
- ASTM A36, Grade 4.6
- Fastener
- Improved heavy-duty hex-head self-tapping screws with neoprene washer
- Translucent sheet for skylight
- 2 mm thick fiberglass profile sheets made of UV-resistant resin
- Roofing sheet
- Thickness 0.46 mm color-coated steel sheet
What are the engineering specifications of BongshaiSteel-Auditorium-Model-106?
Structural Design and Load Capacity
The High-Quality Low-bugdet Steel Structure Auditorium (BongshaiSteel-Auditorium-Model-106) is engineered by Bongshai Steel's in-house structural engineers to withstand high wind velocity, seismic forces, and heavy dead/live loads. All primary framing members are fabricated from certified structural grade steel, pre-drilled, pre-punched, and precision-cut for rapid on-site bolted assembly.
Surface Treatment and Corrosion Protection
Steel components are sandblasted and finished with an epoxy anti-corrosion coating in the Bongshai Steel factory before dispatch, for service in coastal and demanding industrial environments.
How to order or request an official quote for BongshaiSteel-Auditorium-Model-106?
Because every pre-engineered building is custom engineered to client site dimensions, soil conditions, and eave heights, the price above is a starting figure only. Submit your required square footage and site location below or reach out via WhatsApp at +8801789-949060 to receive a comprehensive technical proposal and cost estimate within 24 hours.
Request Official Quote for BongshaiSteel-Auditorium-Model-106
Please provide your project specifications to receive an official engineering estimate.
Model BongshaiSteel-Auditorium-Model-106 (High-Quality Low-bugdet Steel Structure Auditorium) is a certified pre-engineered auditorium manufactured in Dhaka, Bangladesh by Bongshai Steel. Engineered to AISC 360, Eurocode 3, and BNBC 2020 standards, it is export-ready worldwide with custom project pricing.
