Auditorium-Model-106
High Quality low-bugdet steel structure Auditorium
Model Code: Auditorium-Model-106
Starting from Tk 1,950 per sq ft Final price depends on size, site and finish — ask for an exact quote.

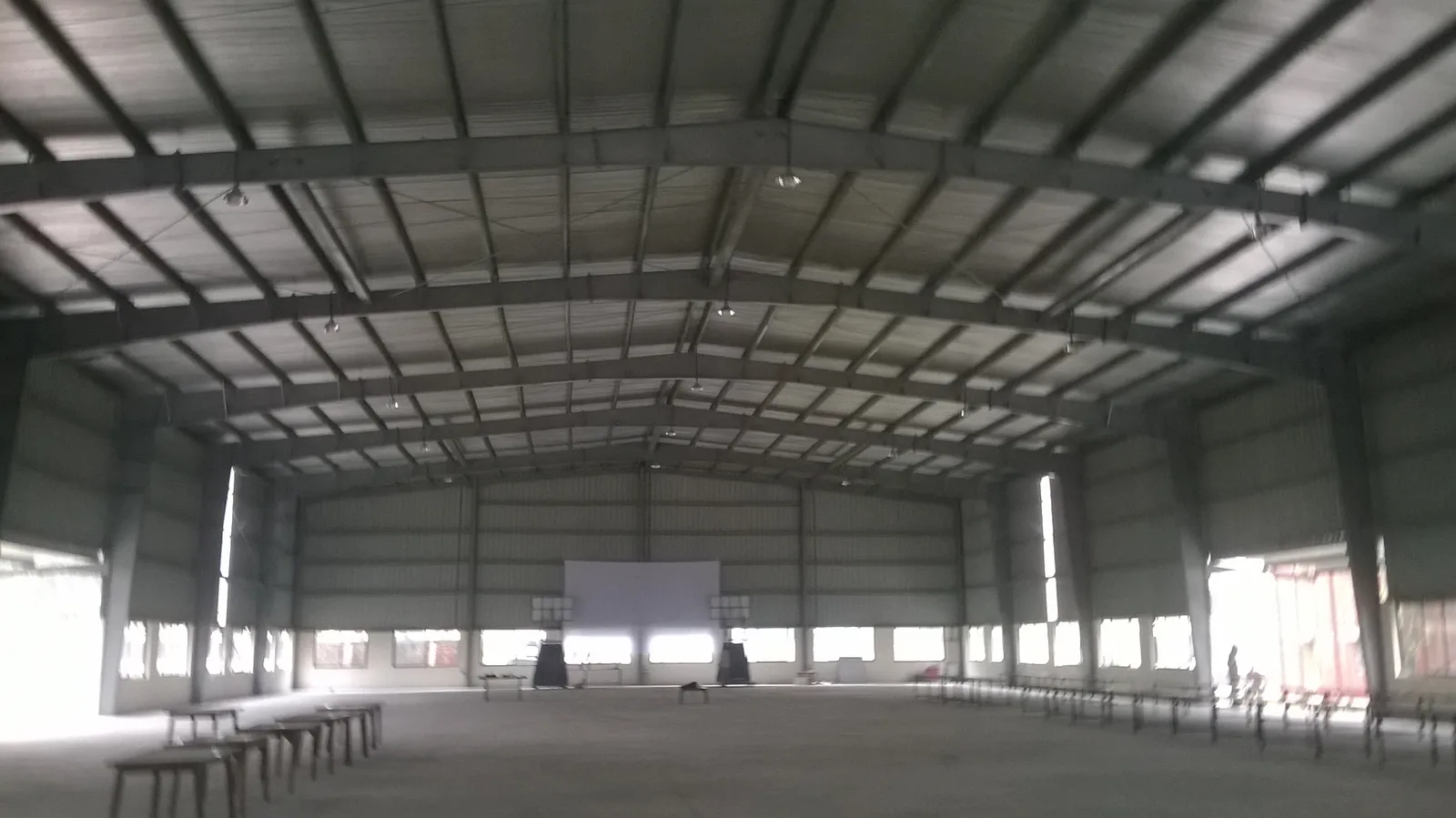

Pre-engineered steel building is a customized design. All framing is made of built-up section from MS steel plate. Built-up column, rafter are main frame and purlin, girt, bracing is secondary frame. Column is connected with concrete column by anchor bolt. All members are connected by high-strength bolts. Building span 10 m ~ 40 m Length 25 m ~ 300 m Bay spacing 7.5 m, 9 m & 10 m Height 8m ~ 12m
What are the engineering specifications of Auditorium-Model-106?
Structural Design and Load Capacity
The High Quality low-bugdet steel structure Auditorium (Auditorium-Model-106) is engineered by Bongshai Steel's in-house structural engineers to withstand high wind velocity, seismic forces, and heavy dead/live loads. All primary framing members are fabricated from certified structural grade steel, pre-drilled, pre-punched, and precision-cut for rapid on-site bolted assembly.
Surface Treatment and Corrosion Protection
Steel components are sandblasted and finished with an epoxy anti-corrosion coating in the Bongshai Steel factory before dispatch, for service in coastal and demanding industrial environments.
How to order or request an official quote for Auditorium-Model-106?
Because every pre-engineered building is custom engineered to client site dimensions, soil conditions, and eave heights, the price above is a starting figure only. Submit your required square footage and site location below or reach out via WhatsApp at +8801789-949060 to receive a comprehensive technical proposal and cost estimate within 24 hours.
Request Official Quote for Auditorium-Model-106
Please provide your project specifications to receive an official engineering estimate.
Model Auditorium-Model-106 (High Quality low-bugdet steel structure Auditorium) is a certified pre-engineered auditorium manufactured in Dhaka, Bangladesh by Bongshai Steel. Engineered to AISC 360, Eurocode 3, and BNBC 2020 standards, it is export-ready worldwide with custom project pricing.
